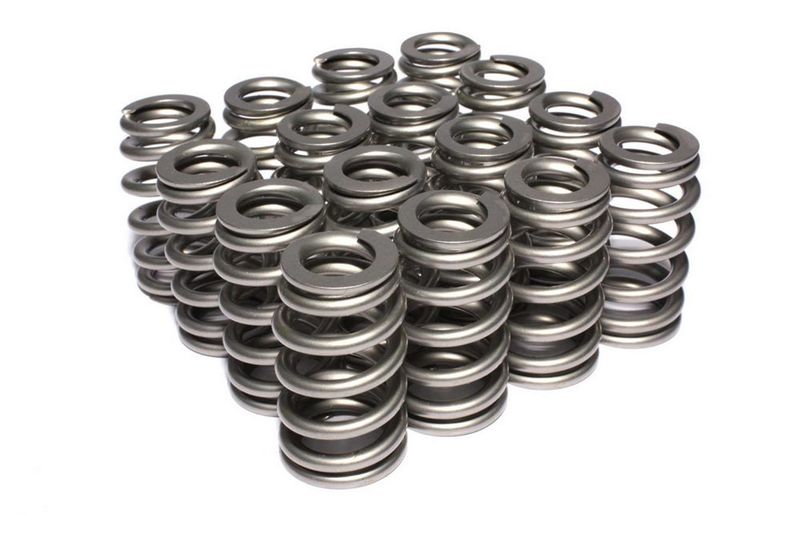

VENTILFJÆR LS 1.310'' / 1.140'' - 373 LBS/IN.

Comp Cams
VENTILFJÆR LS 1.310'' / 1.140'' - 373 LBS/IN. - COMP 26918-16     Spring Style Beehive Spring Quantity Single Spring Damper No Spring Rate 372 lb/in Coil Bind Height 1.14 in Installed Height 1.8 in Outside Diameter of Outer Spring 1.075 in / 1.31 in Inside Diameter of Outer Spring 0.65 in / 0.885 in Maximum Valve Lift 0.6 in Seat Load (LBS) 125 lbs Seat Load At (in) 1.8 in Open Load (LBS) 367 lbs Open Load At (in) 1.15 in Material Steel Quantity Set of 16
Art.nr: CCA-26918-16

4.329,-

Kun 1 igjen på lager
  • Hovedbilde RETAINER 7° 1.055'' SINGLE SPRING
    RETAINER 7° 1.055'' SINGLE SPRING

    RETAINER 7° 1.055'' SINGLE SPRING - COMP CAMS 787-16   Degree 7 Intended Valve Spring Type Standard Intended Spring Quantity Single Intended Valve Spring Diameter 1.055 in Outside Diameter 1.030 in Inside Step Diameter 0.640 in Valve Stem Size 11/32 in Alloy 4140 Material Chromoly Color Black Finish Oxide Quantity Set of 16

    1.349,-

    På lager

Produktet er midlertidig utsolgt. Dersom du ønsker å motta en epost når vi får det inn på lager, kan du legge igjen epostadressen din i skjemaet under.

Informasjon

VENTILFJÆR LS 1.310'' / 1.140'' - 373 LBS/IN. - COMP 26918-16





Spring Style

Beehive

Spring Quantity

Single Spring

Damper

No

Spring Rate

372 lb/in

Coil Bind Height

1.14 in

Installed Height

1.8 in

Outside Diameter of Outer Spring

1.075 in / 1.31 in

Inside Diameter of Outer Spring

0.65 in / 0.885 in

Maximum Valve Lift

0.6 in

Seat Load (LBS)

125 lbs

Seat Load At (in)

1.8 in

Open Load (LBS)

367 lbs

Open Load At (in)

1.15 in

Material

Steel

Quantity

Set of 16

Produsent

Comp Cams

Comp Cams

Produktegenskaper

Merke Chevrolet
Motortype LS Chevrolet
